e90 M3 / Jeep LJ Rubi owner · Preorder #3933623624 · replacing an X5 with this
I've been sitting on this for a while. Already sent it to Scout directly — got a very polished "thanks, noted" from support. So I'm bringing it here, where the people who actually care about this stuff are.
The Harvester has a real shot at being the most capable EREV ever built. But I think the current architecture direction is about to repeat the same mistake every other EREV has made. Here's what I mean — and here's the fix.
---
THE PROBLEM: EREVs ARE JUST BLOATED EVs WITH A GENERATOR BOLTED ON
Every current EREV design makes you haul 1,200–1,500 lbs of low-C-rate NMC or LFP just to provide range. That weight spiral kills towing dynamics, destroys payload headroom, and wrecks off-road agility. It's engineering compromise stacked on engineering compromise.
And the cruel irony — you're carrying all that pack weight specifically so the generator doesn't have to work as hard. The tail is wagging the dog.
---
THE PROPOSAL: A HIGH-RATE BUFFER ARCHITECTURE

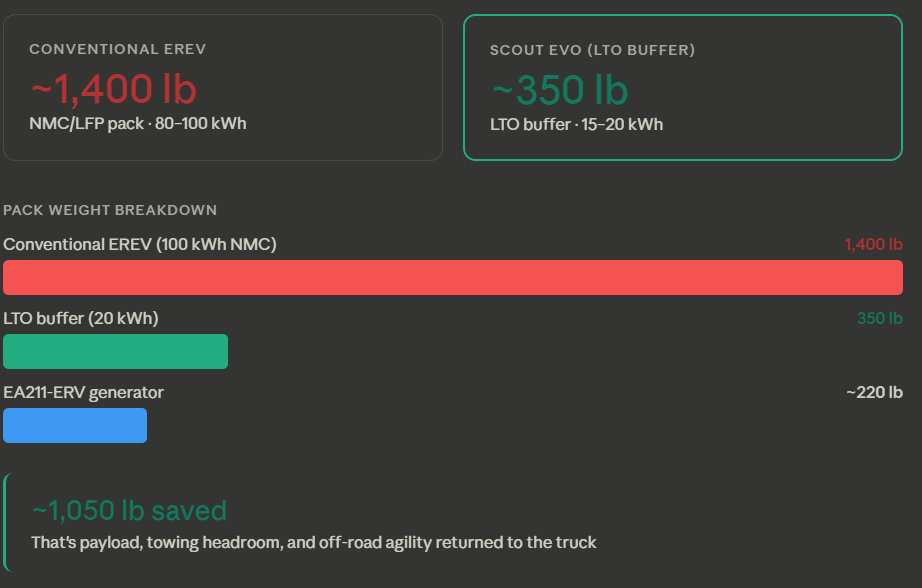

Instead of a 80–100 kWh pack, pair two modular 10 kWh LTO (Lithium Titanate) packs with a purpose-built turbo generator. Total buffer: 20 kWh. Total pack weight: ~350 lbs vs ~1,400 lbs conventional.
For the generator: the EA211-ERV — the exact engine VW just put into production for the ID. Era 9X. 1.5L, Variable Turbine Geometry, Miller cycle, ~105 kW sustained output. Real production engine. Not a concept. Already validated in a large-platform application.

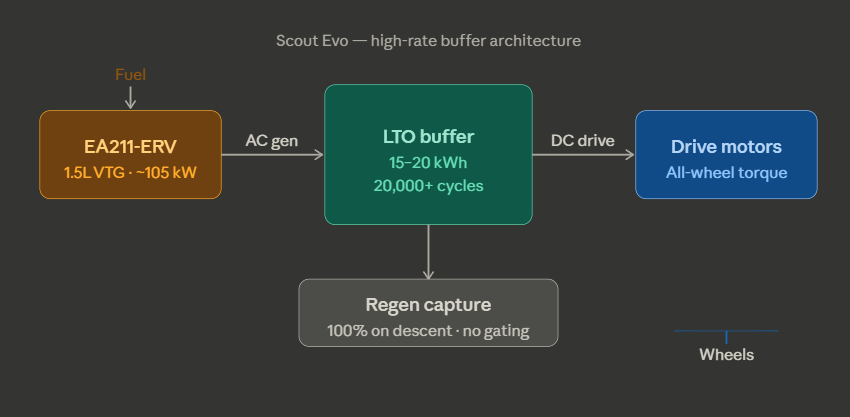

[ INSERT: Architecture diagram ]
---
WHY TWO 10 kWh PACKS INSTEAD OF ONE 20 kWh PACK
This is the part I'm most excited about. Two modular packs changes everything:
Modularity across the lineup. Run one pack in the lighter Traveler build. Run both in the Harvester towing config. Same skateboard platform, two different buyers. Scout sells both without redesigning the chassis.
Serviceability. Replace one pack at a time if one degrades. ~$4,500 instead of $9,000+. A dealership swaps one in an afternoon. This is the crate engine philosophy applied to batteries.
Weight distribution. Two smaller packs gives chassis engineers real flexibility — one under each axle for 50/50 balance. Try that with a 1,400 lb monolithic slab.
VW group platform play. Here's the part that should get a VP's attention: a validated 10 kWh LTO module proven in worst-case truck duty is a group-wide asset. Audi, Porsche, Cupra, VW ID. Buzz — every EREV in the portfolio gets lighter, more durable, more serviceable batteries. Scout doesn't just ask VW for an engine. Scout hands VW the business case for their next battery standard.
"Scout isn't asking VW for parts. Scout is the validation platform for VW's next battery architecture."
---
THE REAL-WORLD CASE: HIGH ALTITUDE MOUNTAIN PASS TOWING
This is where the architecture earns its money. The EA211-ERV's VTG turbo compensates for altitude power loss that kills naturally aspirated engines. The LTO buffer absorbs full regen on descents without thermal gating — consistent, predictable braking feel all the way down. And on the climb back up, the buffer delivers burst power while the generator sustains.
At 10,000 ft towing 5,000 lbs, a conventional EREV with a weak NA generator hits turtle mode. This architecture doesn't. The generator never stops. The buffer never gates. The truck never quits.
---

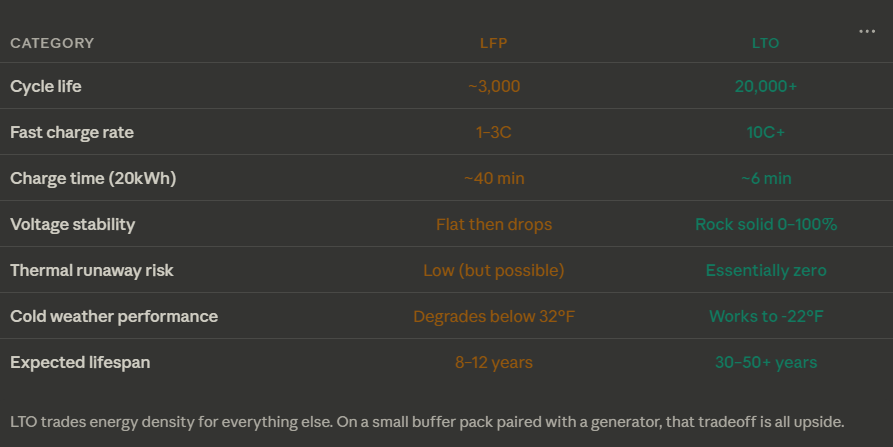

WHY LTO WINS THE LONG GAME

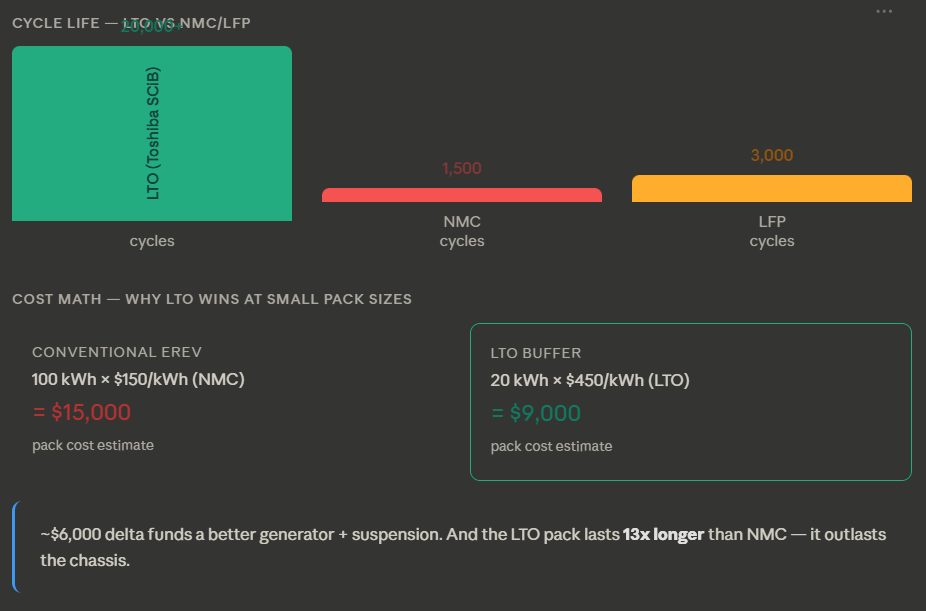

[ INSERT: Cycle life / cost math graphic ]
20,000+ verified charge cycles — Toshiba SCiB production cells. At one full cycle per day that's 54 years. The pack outlasts the chassis by decades.
Full KERS capture. LTO absorbs 100% of hard regen energy on a mountain descent without thermal gating. NMC and LFP gate regen when the pack gets warm — you feel it as inconsistent brake response. LTO doesn't. Ever.
Long term replacement cost. When your 100 kWh NMC pack degrades in year 8–10, you're facing a $15,000–20,000 replacement that may not even be available. With two 10 kWh LTO packs doing 20,000 cycles — that conversation essentially disappears.
Tire life and payload. 1,050 lbs off the chassis is real tire wear reduction over a 15–20 year ownership cycle. Multiple sets of tires. On a truck people actually keep, that math matters.

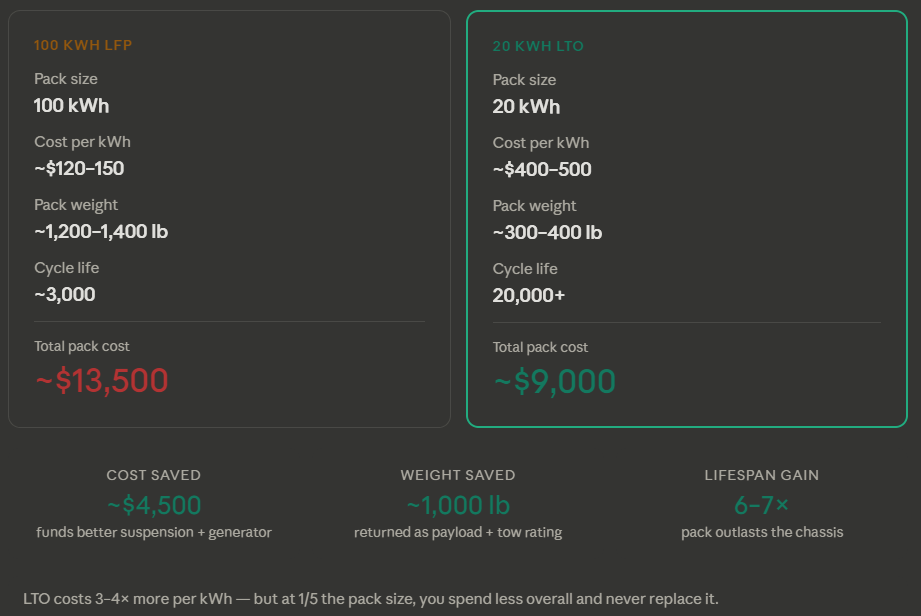

The cost math works. LTO is ~3–4x per kWh vs NMC — but at 20 kWh vs 100 kWh you're buying a fraction of the cells. The delta funds a better generator, better suspension, and still comes out ahead.
---
THE 30-YEAR TRUCK
Scout's heritage pitch is durability. A Harvester with this powertrain is the first EV-based truck that actually backs that up with physics. The battery outlasts the chassis. The generator is a production VW engine with a global parts supply. There's no $20,000 pack replacement hanging over the owner in year 10.
That's what "legendary Scout durability" means in 2025. Not a marketing line. An engineering decision.
"Two 10 kWh LTO packs + EA211-ERV = the first EREV that drives like a truck, lasts like a Land Cruiser, and costs like one too."
I'm not an engineer. I'm a preorder customer who's done the homework. Curious what the technically-minded people in here think — especially anyone who's worked with LTO chemistry or knows the EA211-ERV spec sheet better than I do.
---
Ritter Friedrich · Preorder #3933623624
e90 M3 / Jeep LJ Rubi / replacing an X5
I've been sitting on this for a while. Already sent it to Scout directly — got a very polished "thanks, noted" from support. So I'm bringing it here, where the people who actually care about this stuff are.
The Harvester has a real shot at being the most capable EREV ever built. But I think the current architecture direction is about to repeat the same mistake every other EREV has made. Here's what I mean — and here's the fix.
---
THE PROBLEM: EREVs ARE JUST BLOATED EVs WITH A GENERATOR BOLTED ON
Every current EREV design makes you haul 1,200–1,500 lbs of low-C-rate NMC or LFP just to provide range. That weight spiral kills towing dynamics, destroys payload headroom, and wrecks off-road agility. It's engineering compromise stacked on engineering compromise.
And the cruel irony — you're carrying all that pack weight specifically so the generator doesn't have to work as hard. The tail is wagging the dog.
---
THE PROPOSAL: A HIGH-RATE BUFFER ARCHITECTURE

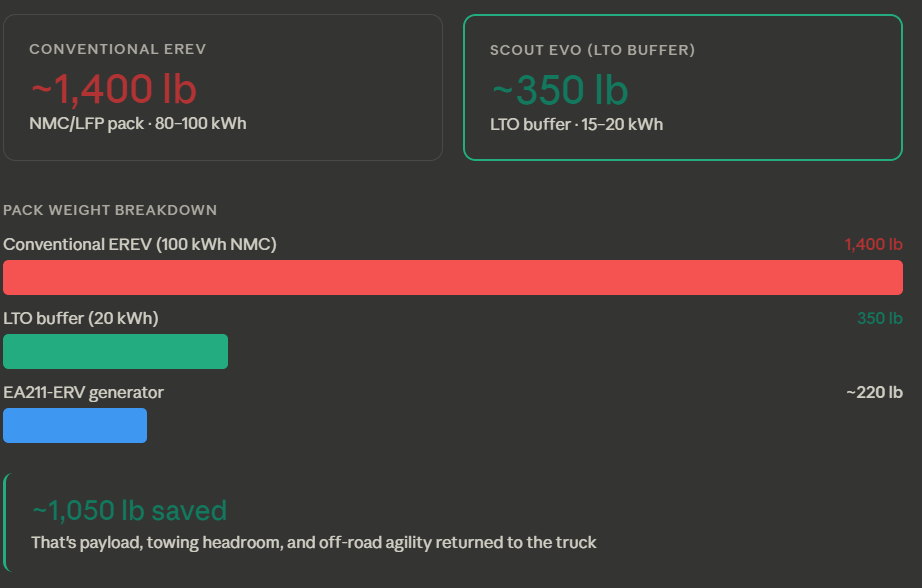

Instead of a 80–100 kWh pack, pair two modular 10 kWh LTO (Lithium Titanate) packs with a purpose-built turbo generator. Total buffer: 20 kWh. Total pack weight: ~350 lbs vs ~1,400 lbs conventional.
For the generator: the EA211-ERV — the exact engine VW just put into production for the ID. Era 9X. 1.5L, Variable Turbine Geometry, Miller cycle, ~105 kW sustained output. Real production engine. Not a concept. Already validated in a large-platform application.

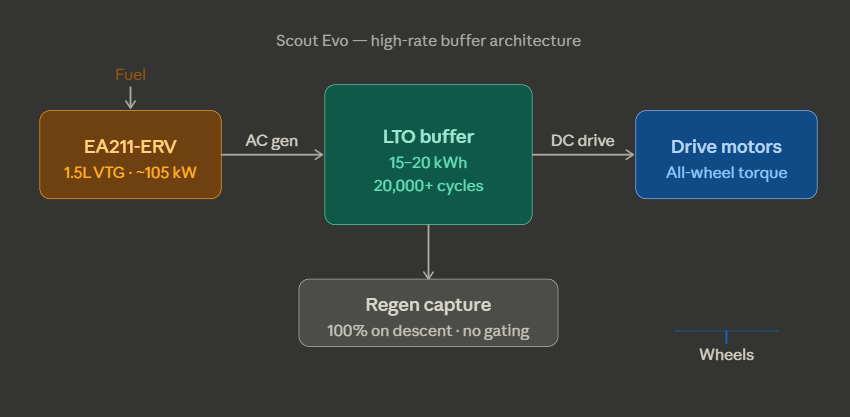

[ INSERT: Architecture diagram ]
---
WHY TWO 10 kWh PACKS INSTEAD OF ONE 20 kWh PACK
This is the part I'm most excited about. Two modular packs changes everything:
Modularity across the lineup. Run one pack in the lighter Traveler build. Run both in the Harvester towing config. Same skateboard platform, two different buyers. Scout sells both without redesigning the chassis.
Serviceability. Replace one pack at a time if one degrades. ~$4,500 instead of $9,000+. A dealership swaps one in an afternoon. This is the crate engine philosophy applied to batteries.
Weight distribution. Two smaller packs gives chassis engineers real flexibility — one under each axle for 50/50 balance. Try that with a 1,400 lb monolithic slab.
VW group platform play. Here's the part that should get a VP's attention: a validated 10 kWh LTO module proven in worst-case truck duty is a group-wide asset. Audi, Porsche, Cupra, VW ID. Buzz — every EREV in the portfolio gets lighter, more durable, more serviceable batteries. Scout doesn't just ask VW for an engine. Scout hands VW the business case for their next battery standard.
"Scout isn't asking VW for parts. Scout is the validation platform for VW's next battery architecture."
---
THE REAL-WORLD CASE: HIGH ALTITUDE MOUNTAIN PASS TOWING
This is where the architecture earns its money. The EA211-ERV's VTG turbo compensates for altitude power loss that kills naturally aspirated engines. The LTO buffer absorbs full regen on descents without thermal gating — consistent, predictable braking feel all the way down. And on the climb back up, the buffer delivers burst power while the generator sustains.
At 10,000 ft towing 5,000 lbs, a conventional EREV with a weak NA generator hits turtle mode. This architecture doesn't. The generator never stops. The buffer never gates. The truck never quits.
---
WHY LTO WINS THE LONG GAME

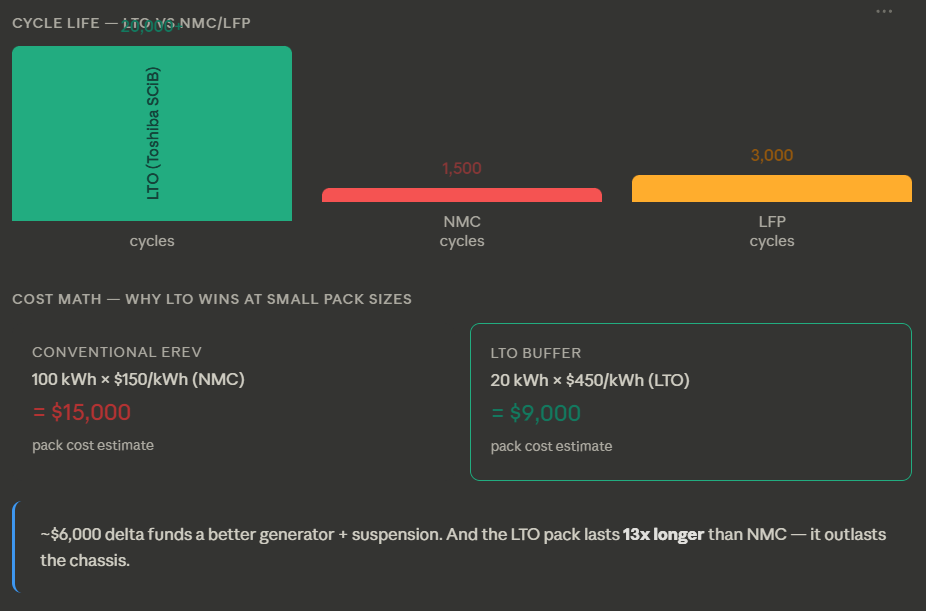

[ INSERT: Cycle life / cost math graphic ]
